Introduction:

VH581 is designed to convert HDMI signal into to Composite / S-Video and Audio output. Both NTSC/PAL video systems are supported. The product is applied in the devices of AV equipment, PS3, CCTV monitor, HD PC to TV, DV to Projector which only equipped HDMI interface and connected with to traditional TV for all display application.

• Convert HDMI signal into to Composite / S-Video and Audio output.
• Compatible with HDMI 1.3 and HDCP
• Input HDMI Resolution : 480p (60Hz), 576P (50Hz), 720p (50Hz / 60Hz), 1080i (50Hz / 60Hz), 1080p (50Hz / 60Hz)
• Select CVBS(Composite AV) or S-Video as output
• Output Video Systems : select PAL or NTSC
• LED Power indicator
• Certified by FCC, CE and ROHS

Application:

‧Security monitor, display HD CCTV Camera, HD DVD on an analog TV.
‧Family use. When using HD device, but his TV is analog.
‧HDMI nterfaced laptop to ananlog TV for education, business presentation, commercial promotion,
   conference, exhibition, etc.
‧Testing HD products in factory

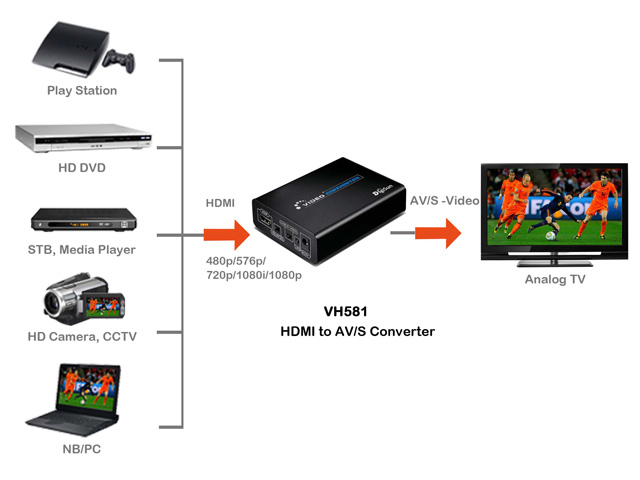

Connection Image:

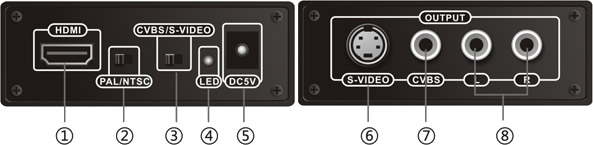

Interface:

1.  HDMI in:                      To connect HD device sources
2   PAL/NTSC Switch:       Select PAL or NTSC
3.  CVBS/S-Video Switch: Select Composite Video or S-Video as output
4.  LED:                            Power indicator
5.  DC 5V:                        To connect DC 5V power supply
6.  S-Video Out:                S-Video output
7.  CVBS Out:                  Composite Video output
8.  L/R:                            Audio L/R output

Specification:


Input HDMI	480P (60Hz), 576P (50Hz), 720P (50Hz / 60Hz), 1080i (50Hz / 60Hz), 1080P (50Hz / 60Hz)
Output Signal	Composite Audio/Video or S-Video
Output Video Systems	NTSC / PAL
Working Temperature	-25~75°C
Working Humidity	10%-60%
Power Supply	DC 5V / 1A
Prduct Dimension	118 x 84 x 28mm (L x W x H), 210 g

Package Contents：

1 x VH581 converter
1 x Power adaptor
1 x AV composite cable
1 x S-video cable
1 x User manual
