Introduction

DigiSun VH549 YPbPr with audio to HDMI converter that allows older analog devices to be integrated seamlessly into the modern home theater. It also takes digital audio and encodes onto the HDMI signal for the full HDMI video and audio effect. The device also comes with a scaler with up-scaling function that will allow you to adjust the output signal to a resolution that is compatible with your HDMI display. VH549 can be easily connected any HDMI display for the full digital video and audio experience.

Introduction：

• YPbPr input resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50Hz /60Hz, 1080i@50Hz/60Hz, 1080P@50Hz/60Hz.
• Audio Input Format : Stereo Audio R/L.
• HDMI output resolution: Up-Scaler 720P@60HZ, 1080P@60Hz
• Auto-store setting of output resolution
• Support Color Version technology up to the saturation level of color.
• Support HDMI 1.3b and HDCP 1.2

Color Vision Techology

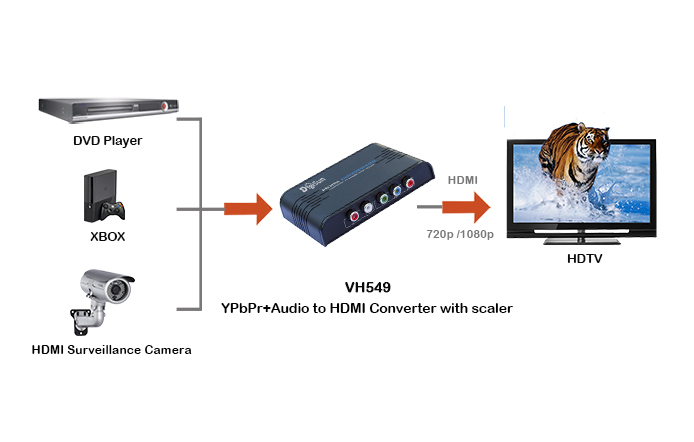

Connection Image：

Specification：

YPbPr Input Format	480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50Hz /60Hz,     1080i@50Hz/60Hz, 1080P@50Hz/60Hz
Audio Output Format	R/L
HDMI  Output Format	Up-Scaler 720P@60HZ, 1080P@60Hz
Protocol	HDMI 1.3b, HDCP 1.2
Power Supply	DC 5V / 1A
Dimension	120 x 78 x 22 mm ( L x W x H ), 100 g

Package Contents：

1 x VH549 Converter
1 x User Manual
1 x Power Supply
