Introduction

Introduction：

VH594 is HDMI to YPbPr converter which can convert HDMI digital video and audio signal to analog component signal and R/L stereo/digital SPDIF audio signal. The device also comes with a scaler with both up-scaling and down-scaling function that will allow you to adjust the output signal to a resolution that is compatible with your RGB display.



HDMI to componet video YPbPr adapter converter for Xbox/PS3/PS4/Apple TV/ Roku/ Fire TV/ STB/ Blu-ray Players/ Game Console/DVD etc. Support Color Version technology up to the saturation level of color. Support HDMI 1.3 and HDCP 1.2 Audio Output Format : R/L Stereo and digital SPDIF audio. HDMI video input format: 480i/576i/480p/576p/720p/1080i/1080P Supports OSD (On-Screen Display) Supports both Up and Down Scaler

 Color Vision Technology

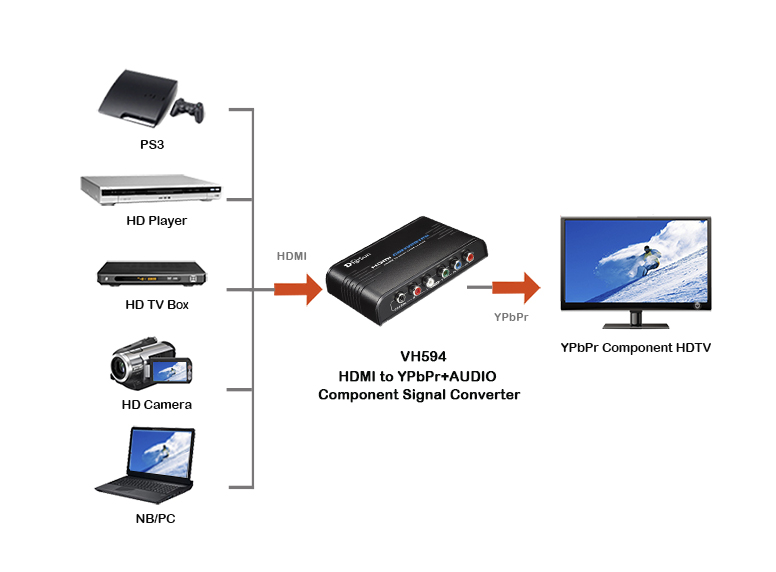

Connection Image：

Specification：

HDMI video input signal	480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080P@50Hz/60Hz
HDMI PC input signal	800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1920x1080@60Hz
YPbPr output signal	480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50Hz /60Hz, 1080i@50Hz /60Hz, 1080P@ 50Hz /60Hz
Audio output ports	RCA R/L and S/PDIF
Protocol	HDMI 1.3, HDCP 1.2
Power Supply	DC 5V / 1A
Dimension	118 x 78 x 22 mm ( L x W x H ), 98 g

Package Contents：

1 x VH594 Converter
1 x user manual
1 x power supply
