Introduction:
VH612 3D 1x2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It is appropriately applied for HD video display in demo or presentation center. The feature of 1080P 3D enhance the fantastic display of blue ray DVD, PS3 or any HD AV device.
- 1 x HDMI input displays on 2 x HDMI outputs simutaneously
- Max Link Range: 1920X1080, 1080P; 3D 1080P / 24HZ
- Output protocol compatible HDMI 1.3 & HDCP1.1.2
- Supporting DTV/HDTV 480p/576p/720p/1080i/1080P(50HZ; 60HZ); 3D 1080P / 24HZ
- Compatible blue-ray, PS3 media format. Fully support 3D display.
- Operating Frequency: Up to 225MHz
- EIDI Duration: 4 seconds
- Max. cable extension: 10 meters by 28AWG HDMI cable; 15 meters by 26AWG HDMI cable

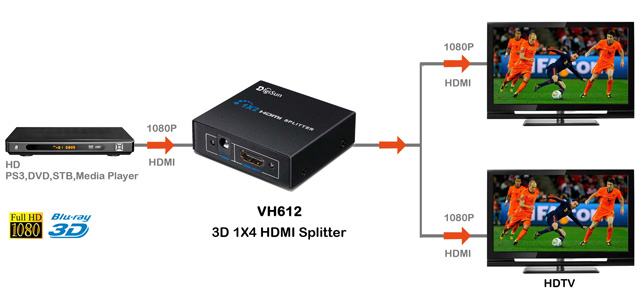

Connection Image:
Specification:
| I/O HDMI ports |
1 input, 2 output |
| Max Signal Range |
1920X1080, 1080P; 3D 1080P @24HZ |
| Supporting DTV/HDTV |
480p/576p/720p/1080i/1080P(50HZ; 60HZ); 3D 1080P @24HZ |
| Bandwidth |
Up to 225MHz |
| Protocol |
3D HDMI 1.3 & HDCP 1.2 |
| EIDI Duration |
4 seconds |
| Transmission length |
10 meters by 28AWG HDMI cable
15 meters by 26AWG HDMI cable |
| Power Supply |
DC 5V / 1A , LED indication for Power and Signal Ports |
| Product Dimension |
60 x 64 x 20 mm 110 g |
Package Contents:
1 x VH612 HDMI splitter
1 x power supply
1 x user manual
|
