                                    DigiSun VH714 4K2K HDMI 1x4 Splitter

Introduction:

VH714 4K2K 1x4 HDMI splitter distributes one HDMI source to four HDMI displays simultaneously. It provides high performance audio and video output through HDMI cables up to 4K2K resolution and is capable of receiving and transmitting up to 10.2Gbps of bandwidth without data loss.

• 1 x HDMI input displays to 4 x HDMI outputs with scaler function
• Max Link Range: 1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
• Protocol compatible HDMI 1.4 & HDCP1.2.
• Supporting 480i/480P@60Hz, 576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P/24Hz 3D, 4Kx2K
• Compatible blue-ray, PS3 media format, Fully support 3D display.
• Operating Frequency: Up to 10.2GHz
• ESD protection(EC61000-4-2s)

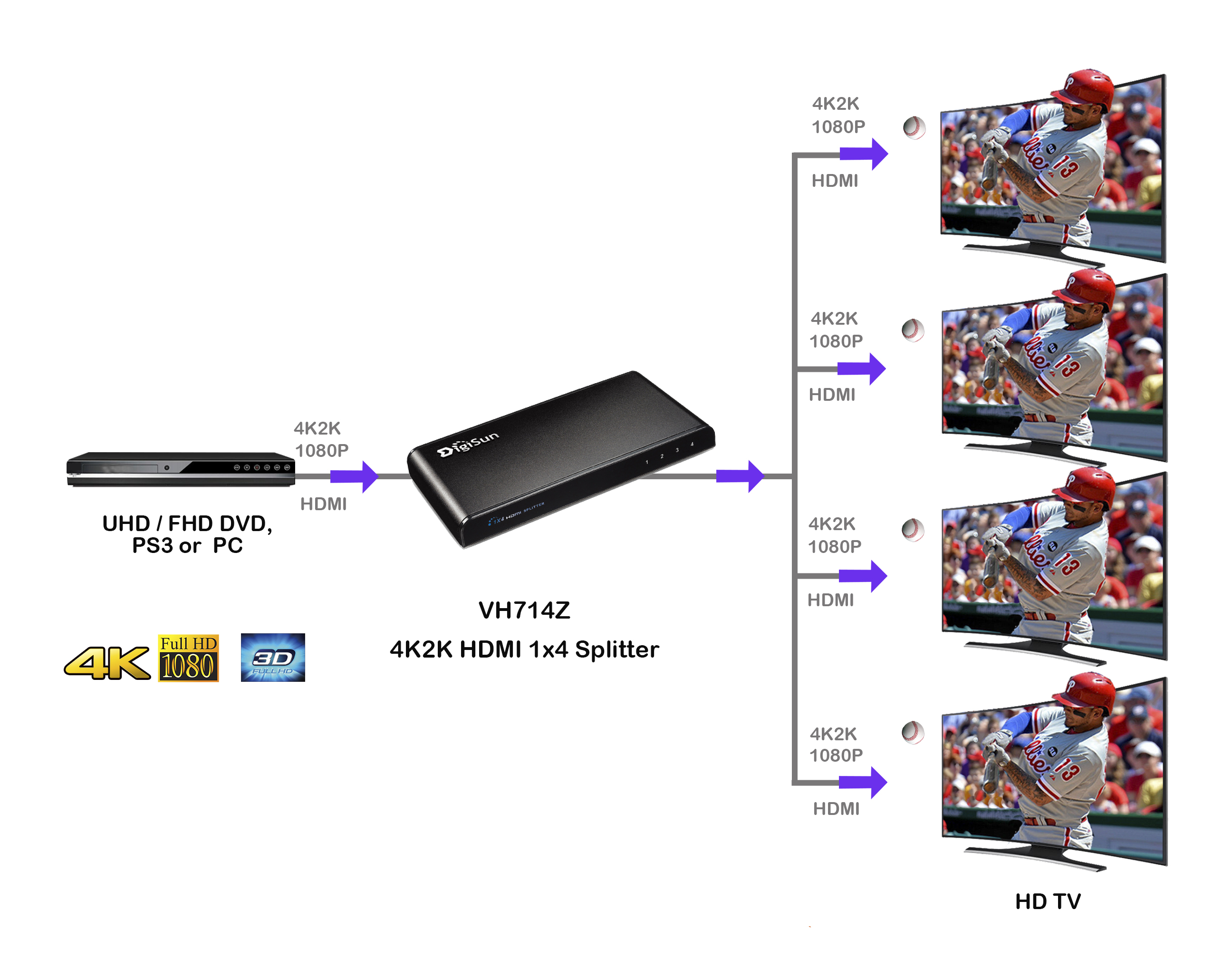

Connection Image:

Specification：


I/O HDMI ports	1 INPUT, 4 output
Max Signal Range	1920 x 1080 1080P; 3D 1080P @24Hz, 4K x 2K
HDMI Resolution	480i/480P@60Hz, 576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P/24Hz 3D, 4Kx2K
Bandwidth	10.2 GHz
Protocol	4K2K HDMI 1.4 & HDCP 1.2 (Compatible HDMI 1.3/1.2/1.1/1.0)
Video Color Format	24 / 30 / 36(bit) deep color
Audio Format	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
ESD Protection Protocol	IEC61000-4-2s
Transmission Length	Input  30m Output  25m
Power Supply	DC 5V / 1A
Dimension	156 x 79 x 17 mm, 205 g

Package Contents：

1 x VH714 4K2K HDMI 1x4 Splitter
1 x User Manual
1 x Power Adaptor
