Introduction

Introduction:

VH718Z 4K2K 1x8 HDMI splitter distributes one HDMI source to eight HDMI displays simultaneously. It provides high performance audio and video output through HDMI cables up to 4K2K resolution.

• 1 x HDMI input displays to 8 x HDMI outputs with scaler function
• Max Link Range: 1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
• Protocol compatible HDMI 1.4 & HDCP1.2
• Supporting 480i/480P@60Hz,576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P@24Hz 3D, UHD 4Kx2K
• Compatible blue-ray, PS3 media format, Fully support 3D display.
• The elegant fuselage surface uses black design and piano baking varnish processing.
• Easy to install.

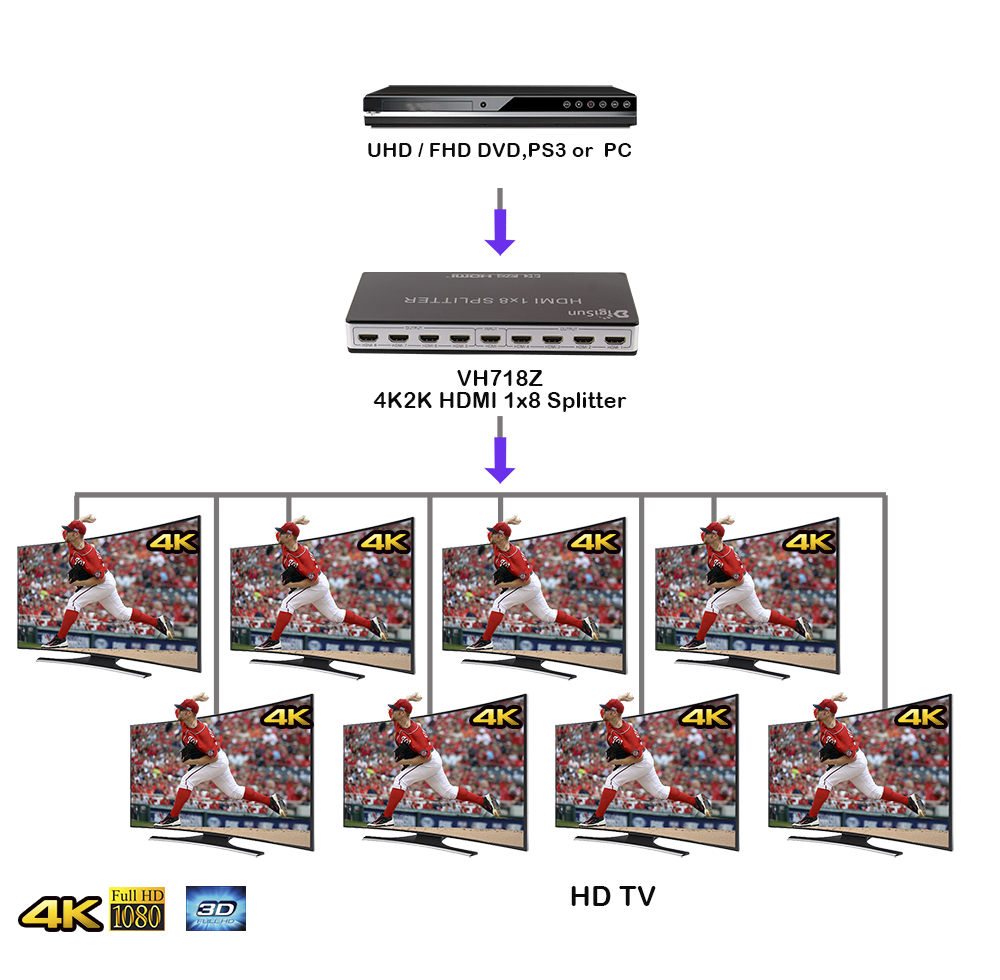

Connection Image:

Specification：


I/O HDMI ports	1 input, 8 output
Max Signal Range	1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
HDMI Resolution	480i/480P@60Hz,576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P@24Hz 3D, UHD 4Kx2K
Protocol	4K2K HDMI 1.4 & HDCP 1.2 (Compatible HDMI 1.3/1.2/1.1/1.0)
Video Color Format	12(bit) deep color
Audio Format	DSD Audio and HD(HBR) Audio
Power Supply	DC 5V / 3A
Dimension	216 x 98 x 27 mm, 327 g

Package Contents：

1 x VH718Z Splitter
1 x User Manual
1 x Power Supply
