Introduction:

VH742 4x2 HDMI matrix switch can connect 4 HDMI inputs and 2 HDMI outputs. It distributes any one of 4 sources to either of 2 displays, and work as a splitter to show the same source on 2 displays simultaneously. Analog R/L audio and digital SPDIF audio can be extracted from HDMI signal.

• Can be Switch & Splitter with scaler function.
• Wall Mounted Type design.
• Support UHD 4K2K HDTV.
• Support 4K x 2K,1920 x 1080 1080P,3D 1080P@24HZ resolution.
• Support Analog R/L and SPDIF(Direct Stream Digital /HD /HBR Audio) audio outputs.
• Support deep color 24bit,30bit, 36bit.
• Support HDMI 1.4 and HDCP1.3.
• Led Status Light allow the user to know the working status easily.
• The input selection of 3 HDMI sources can be easily switched by the IR remote controller or switch button on front panel.
• No loss of quality.

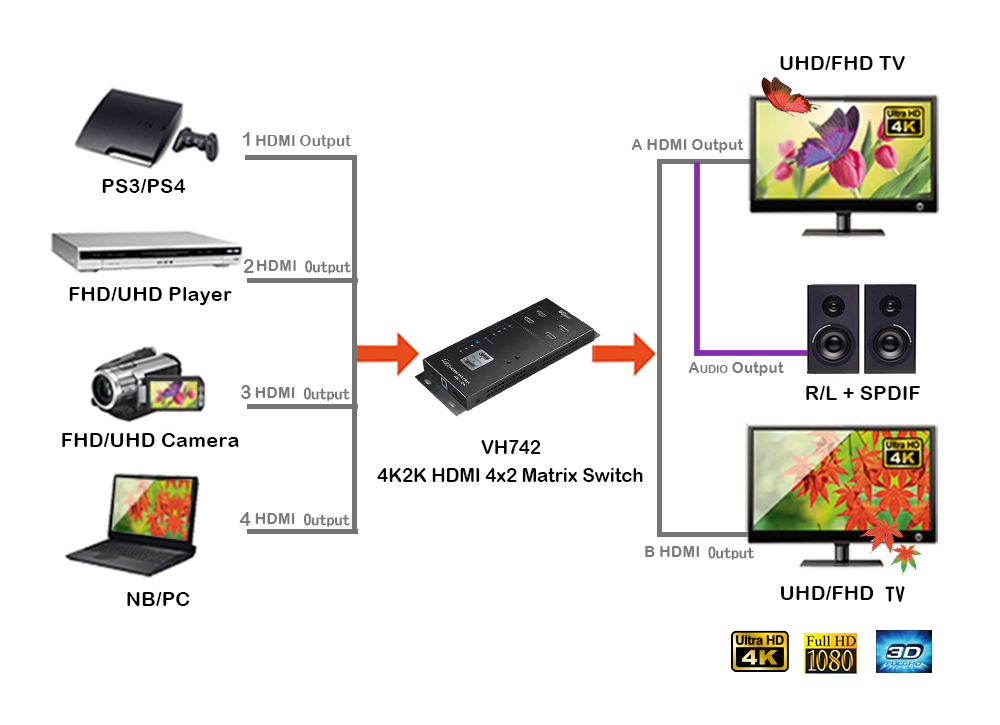

Connection Image:


Specification：


HDMI ports	4 input, 2 output
Max Signal Range	1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
HDMI Resolution	480i/480P@60Hz, 576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P/24Hz 3D, 4Kx2K
Bandwidth	10.2 GHz
Protocol	4K2K HDMI 1.4 & HDCP 1.3 (Compatible HDMI 1.3/1.2/1.1/1.0)
Video Color Format	24 / 30 / 36(bit) deep color
Audio Format	Analog R/L and SPDIF( Direct Stream Digital / HD / HBR Audio ）audio output
Battery Type of Rmote	CR2025 3V Lithium
ESD Protection Protocol	IEC61000-4-2s
Transmission Length	15m for HDMI signal
Power Supply	DC 5V / 3A
Dimension	210 x 85 x 18 mm, 408 g

Package Contents：

1 x  VH742 4K2K HDMI 4x2 Matrix Switch
1 x  IR Remote Controller  (This remote needs CR2025 3V Lithium Cell battery)
1 x  IR Extension Receiver
1 x  R/L Analog Audio + SPDIF Digital Audio Cable
1 x  User Manual
1 x  5V Power Adaptor
4 x  Fitting Screw

P.S. According to transporation safty regulation, we cannot delivery the battery of remote controller together with product package. Please prepare it by yourself. We apologize for any of inconvenience to you.
