Introduction

Introduction:

UH818 is a HDMI2.0 splitter that supports 4K@60Hz, Full HD, 3D, HDR with a single HDMI source, and accessing to multiple HDMI sinks. It easily allows one HDMI devices to split eight HDMI compatible monitors or projectors and can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

• 1 x HDMI input displays on 8 x HDMI outputs simultaneously
• Support 4K2K@60Hz HDR resolution
• Support HDCP 1.4 to HDCP 2.2 conversion
• Support deep color 24bit, 30bit, 36bit
• Support HDTV UHD 4K2K and FHD 1080P
• Video Format Support: 4K2K@60Hz 12/10bits YCbCr 4:2:0 and 8bits YCbCr 4:4:4 (Note: It only support the standard HDMI Source YcbCR4:4:4 Signal)
• Compatible Blue-Ray 24/50/60fs, HD-DVD, xvYCC
• Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
• Need DC 5V/2A power supply

 Support HDMI 2.0 4K 60P

Support HDR

Connection Image:

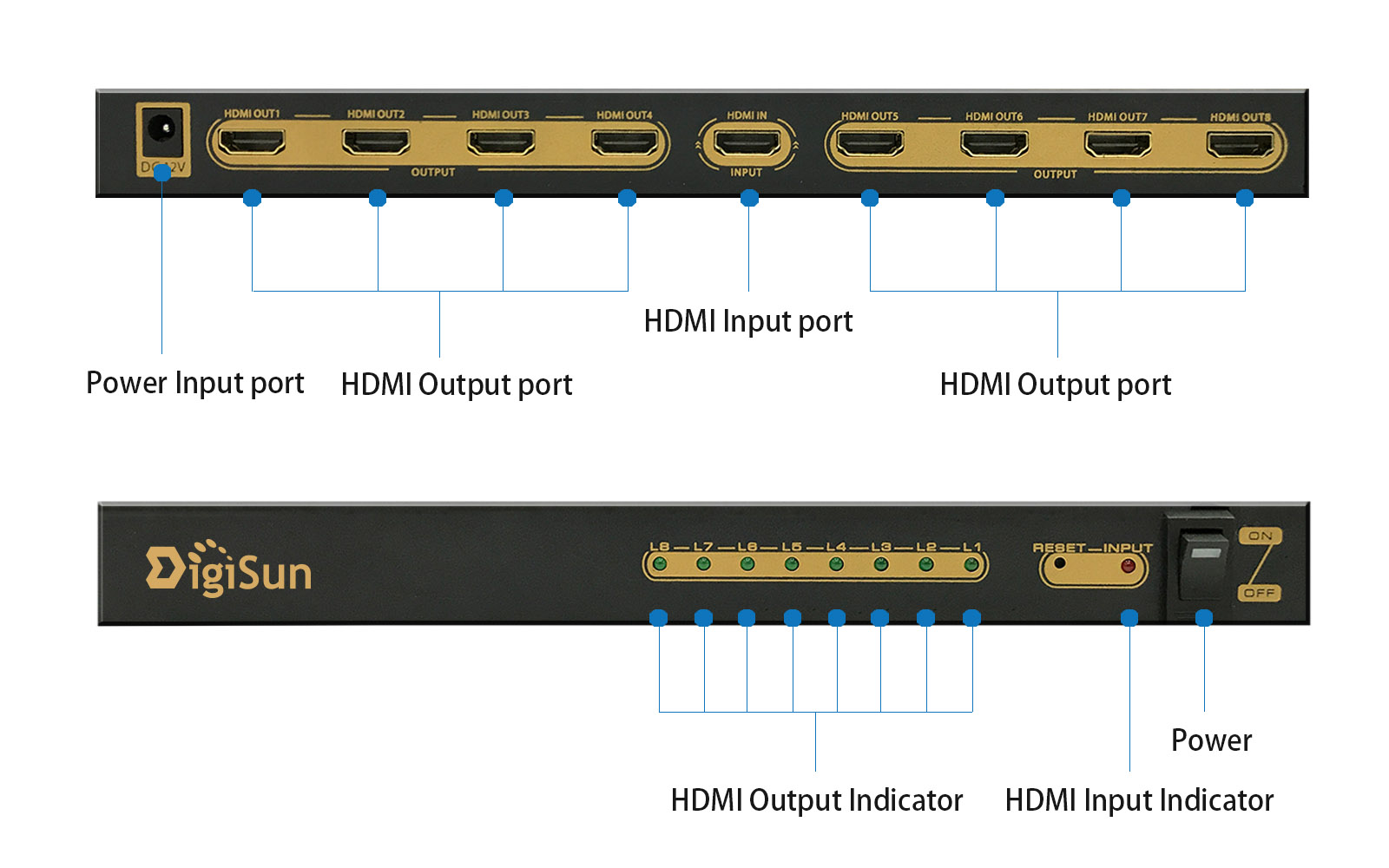

Interface：

 Specification：

Model	UH818
HDMI Port	1 Input, 8 Output
Audio Format	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Resolution	4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i
Protocol	HDMI 2.0 & HDCP 2.2 (Compatible HDMI 1.4/1.3/1.2/1.1/1.0)
Bandwidth	Up to 600MHz , 18Gbps
Transmission length	4K：      Input / Output 5m  1080P：Input / Output 15m
Video Color Format	24 / 30 / 36(bit) deep color
Power Supply	DC 12V / 3A
Dimension	277 x 136 x 25 mm (L x W x H) , 888g

Package Contents：

1 x UH818 HDMI 2.0  1x8 Splitter

1 x User Manual

1 x Power Adaptor
