Introduction

Introduction:

AH211K HDMI audio extractor is one device that can support 3D, 4K x 2K, ARC. It allows the one HDMI/one ADV source input and one HDMI output connected to HD Display (TV or Projector). At the same time, extract the audio to use SPDIF audio out or L/R Stereo audio out with ARC function.

• One HDMI input converter to one HDMI+ One SPDF/LR Audio Out
• Output audio support: SPDIF+R/L analog Audio Output
• Support Full HD 1080P/Full 3D/4K*2K resolution
• Support ARC Function: Without adding any extra HDMI cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content.
• HDMI to achieve the synchronization of audio signal separation. There are ADV /2.0CH / 5.1CH three kinds of audio mode options.
• LED indication: when source or sink is working, LED relative to is light.
• No loss of quality
• Easy to install

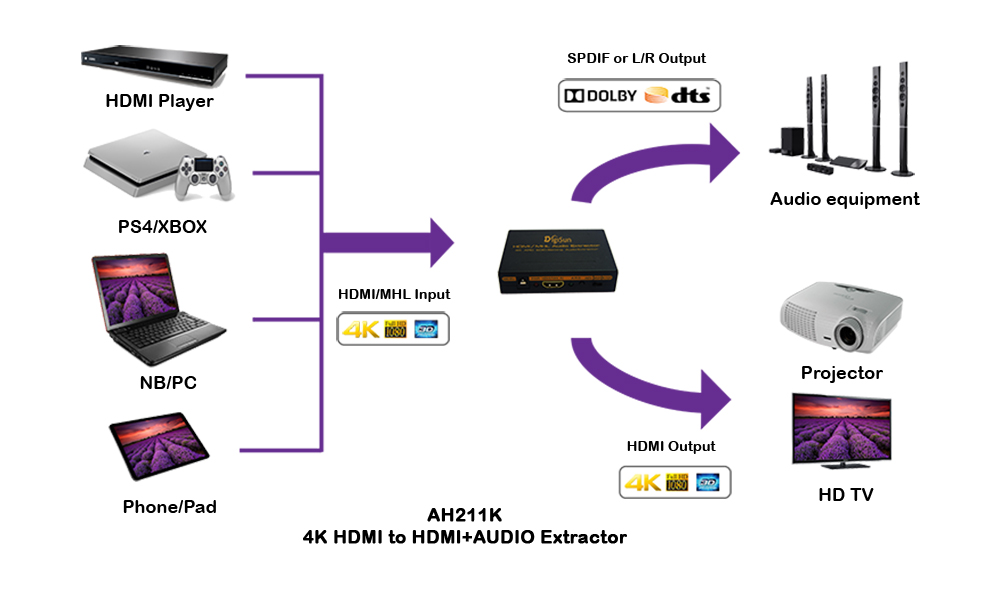

Connection Image: :



 Specification:

 Package Contents:

1 x  AH211K Audio Extractor
1 x  User Manual
1 x  Power Supply
