Introduction



 Introduction:

The 6x2 HDMI Matrix supports the feature of PIP, ARC,CEC, 4K and 3D, which can switch or splitter the six HD input sources to the two HD Displays. It also can extract the audio by the Optical port or 3.5 mm jack. ARC feature can return TV audio to the av receiver; the PIP feature can choose the input sources channel by watch the small picture window at a display.

• Six HDMI Inputs switch or split to two HD Displays.
• Supports Full HD,3D and 4Kx2K video.
• It is to extract audio from output A or output B port by the SPDIF or 3.5mm Headphone audio output port.
• Support 2.0/ 5.1/ ADV three kinds of audio mode options.
• The output A port supports ARC function.
• Supports HDMI audio separation, can output by optical and 3.5mm Headphone at the same time
• Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0
• Support PIP(Picture in picture) function: have one main picture and five small pictures, it can switch of input sources by press button or remote.
• LED indication: when source or sink is working, LED related will go bright.
• Support IR Remote Control and Push Button at device control.
• Led Status Light allows the user to know the working status easily.
• Power-off memory.

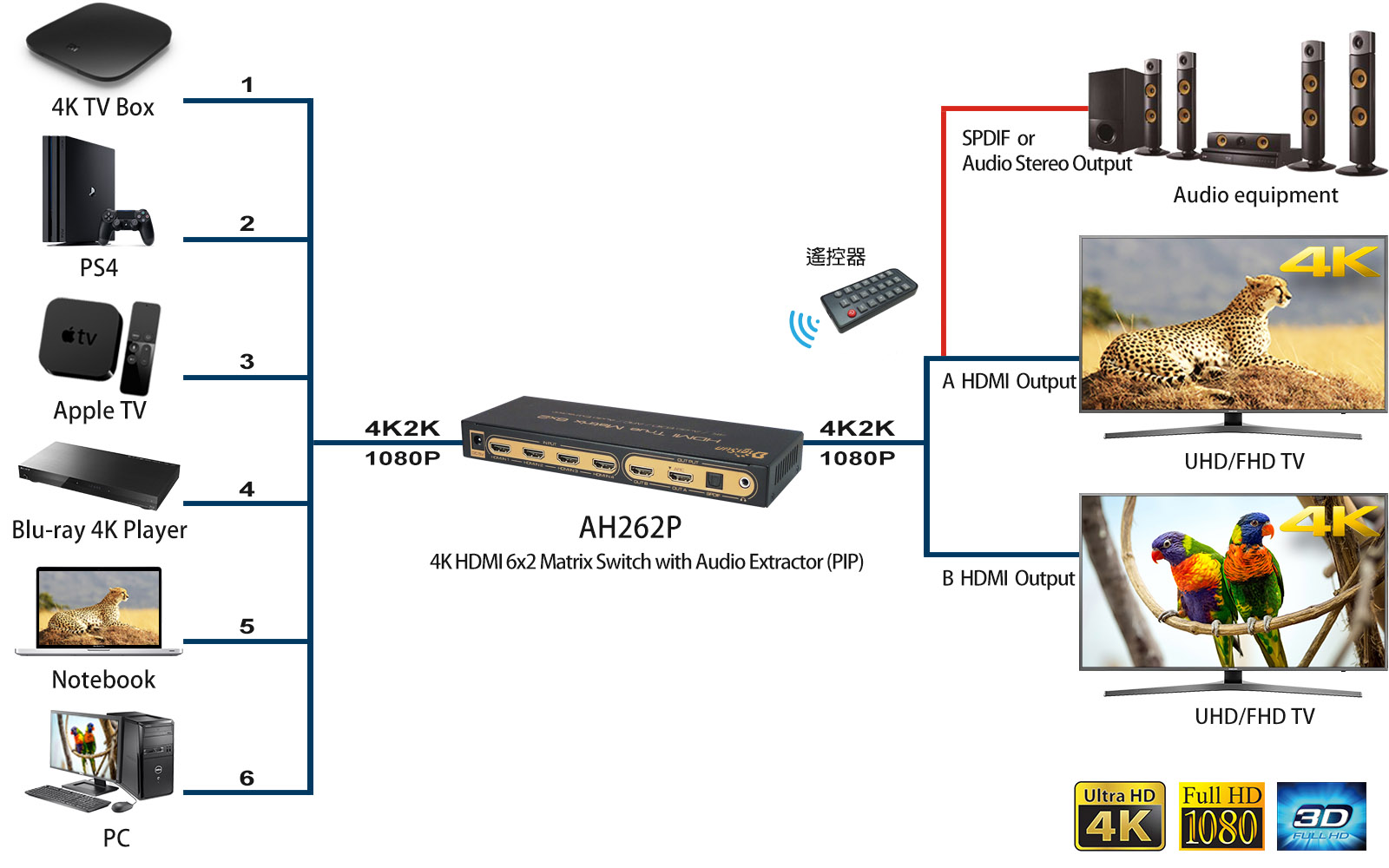

Connection Image:

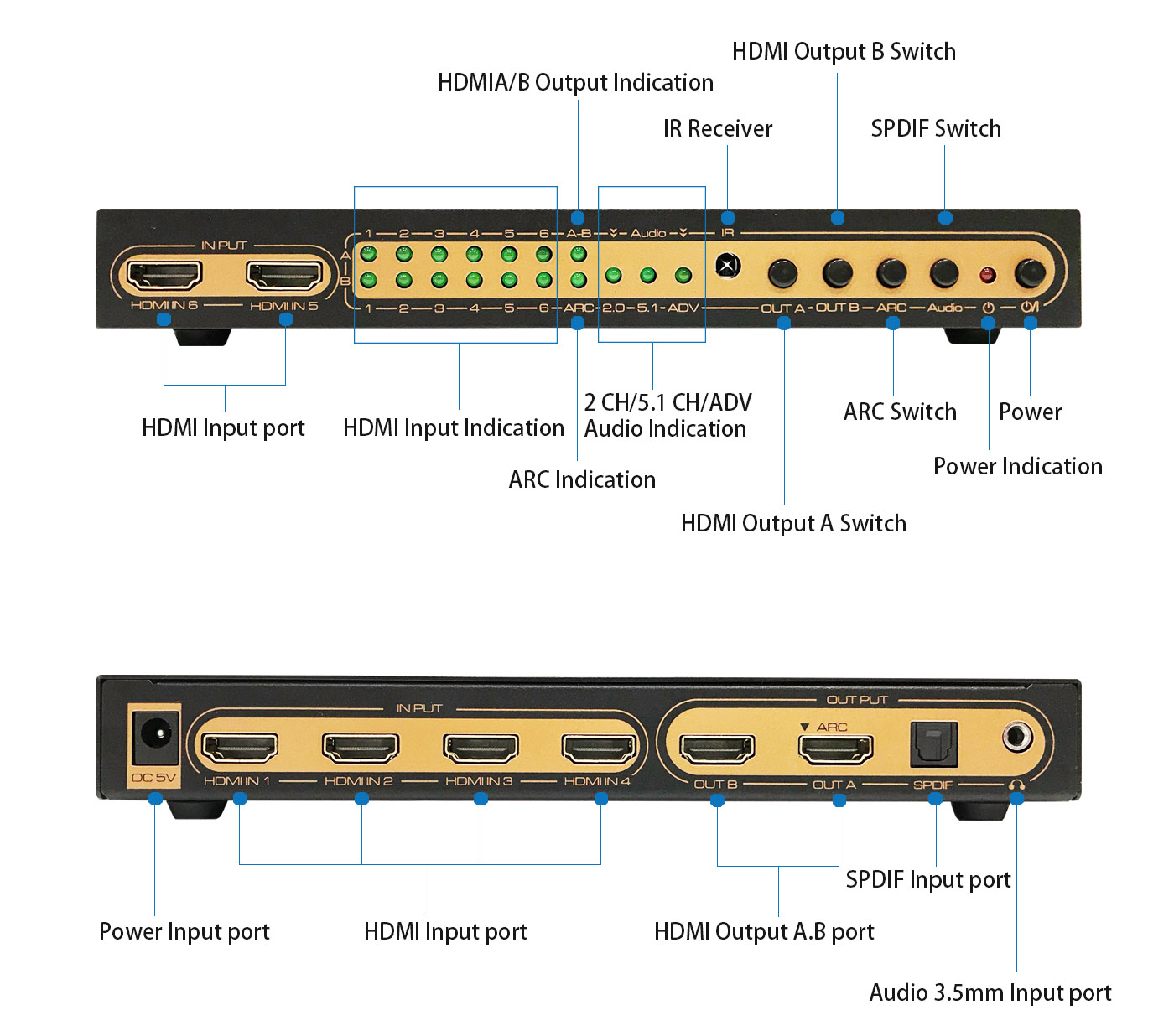

Interface：

Specification：


I/O HDMI port	6 input, 2 output
Audio Format	SPDIF( DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD ) and 3.5mm analog audio
Max Signal Range	UHD 4K x 2K, 1920 x 1080 1080P; 3D 1080P @24HZ
HDMI Resolution	480i/480P@60Hz, 576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P/24Hz 3D, UHD 4Kx2K
Bandwidth	300 MHz / 9.0 GHz
HDMI Control Fuction	ARC amd CEC
Protocol	4K2K HDMI 1.4 & HDCP 1.4 (Compatible HDMI 1.3/1.2/1.1/1.0)
Video Color Format	24/ 30 / 36 / 48(bit) deep color
Battery Type of Remote	CR2025 3V Lithium
Power Supply	DC 5V / 2A
Dimension	205 x 74 x 26 mm, 440 g

Package Contects：

1x AH262P 6x2 Matrix Switch with Audio Extractor

1 x IR Remote(This remote needs CR2025 3V Lithium Cell battery)

1 x User Manual

1 x Power Adaptor(DC 5V/2A)
