VH712Z 4K HDMI 1x2 Splitter



Model: VH712Z

  • 1 x HDMI input displays to 2 x HDMI outputs
  • Max Signal Range: 1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
  • Protocol HDMI 1.4 & HDCP 1.2
  • The elegant fuselage surface uses black design and piano baking varnish processing

Introduction



DigiSun VH712Z 4K2K HDMI 1x2 Splitter

Introduction:

VH712Z 4K2K 1x2 HDMI splitter distributes one HDMI source to two HDMI displays simultaneously. It provides high performance audio and video output through HDMI cables up to 4K2K resolution.

  • 1 x HDMI input displays to 2 x HDMI outputs with scaler function
  • Max Link Range: 1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
  • Protocol: HDMI 1.4 & HDCP 1.2(compatible HDMI 1.3/1.2/1.1/1.0)
  • Support UHD 4K2K and FHD 1080P HDTV
  • Supporting 480i/480P@60Hz, 576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P@24Hz 3D, UHD 4Kx2K
  • Compatible blue-ray, PS3 media format, Fully support 3D display.
  • The elegant fuselage surface uses black design and piano baking varnish processing.
  • Easy to install.

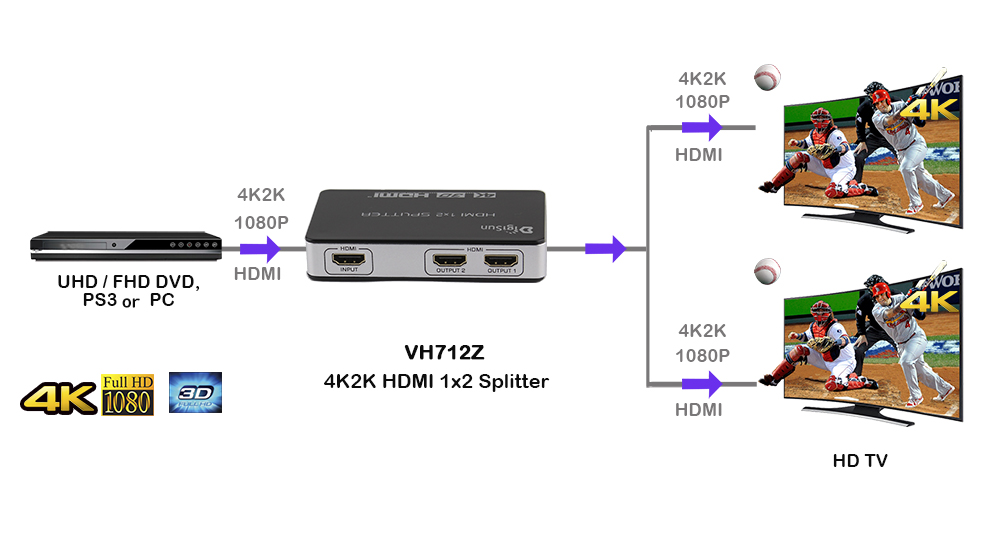

Connection Image:


Specification:

I/O HDMI ports 1 input, 2 output
Max Signal Range 1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
HDMI Resolution

480i/480P@60Hz, 576i/576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz, 720P@50/60Hz 3D, 1080P@24Hz 3D, UHD 4Kx2K

Protocol 4K2K HDMI 1.4 & HDCP 1.2 (Campatible HDMI 1.3/1.2/1.1/1.0)
Video Color Format 12 (bit) deep color
Audio Format DSD Audio and HD(HBR) Audio
Power Supply DC 5V / 1A
Dimension 110 x 60 x 18 mm  103 g


Package Contents:

1 x VH712Z 1x2 Splitter
1 x User Manual
1 x Power Supply
