Introduction

Introduction:

VH121 HDMI Switch with Bi-Directional function and HDCP Passthrough. It can connect two high-definition HDMI sources to a single HDMI display/ projector or output single high-definition source to two displays/ projectors.

• 2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV
• 1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV
• No need power supply
• Full compliance with the HDMI Specification V1.0/V1.1/V1.2/V1.3/V1.4/V2.0
• Main control: Manual electron select
• With 2 LED & display working port
• 3 HDMI A/F connectors
• Easy install & operation
• Support HDMI Plug & Play
• Support UHD4Kx2K@60Hz 8bits YCbCr 4:2:0
• Support MAX cable length:16ft /5m (total)

Connection Image:

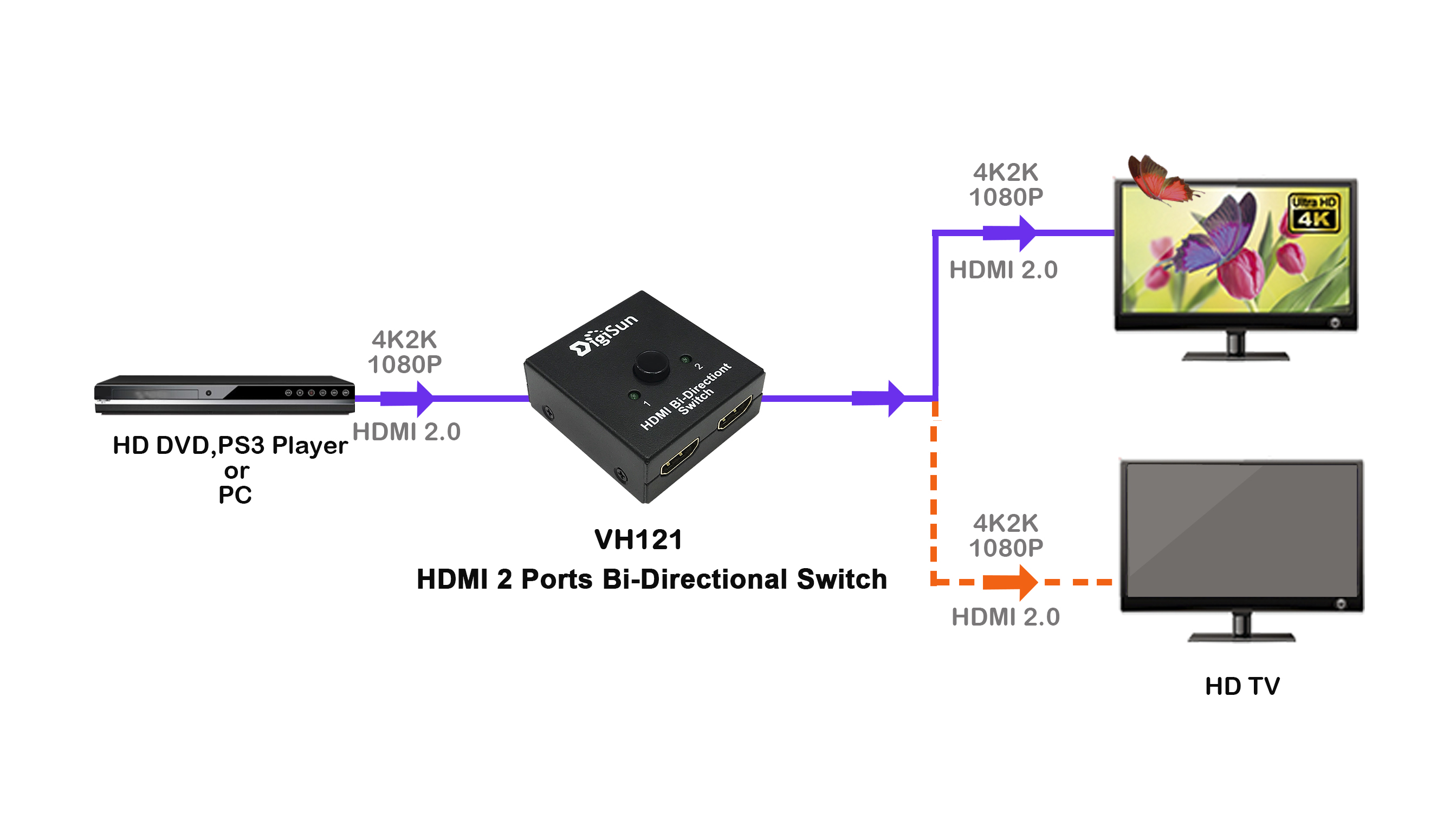

Splitter Mode：

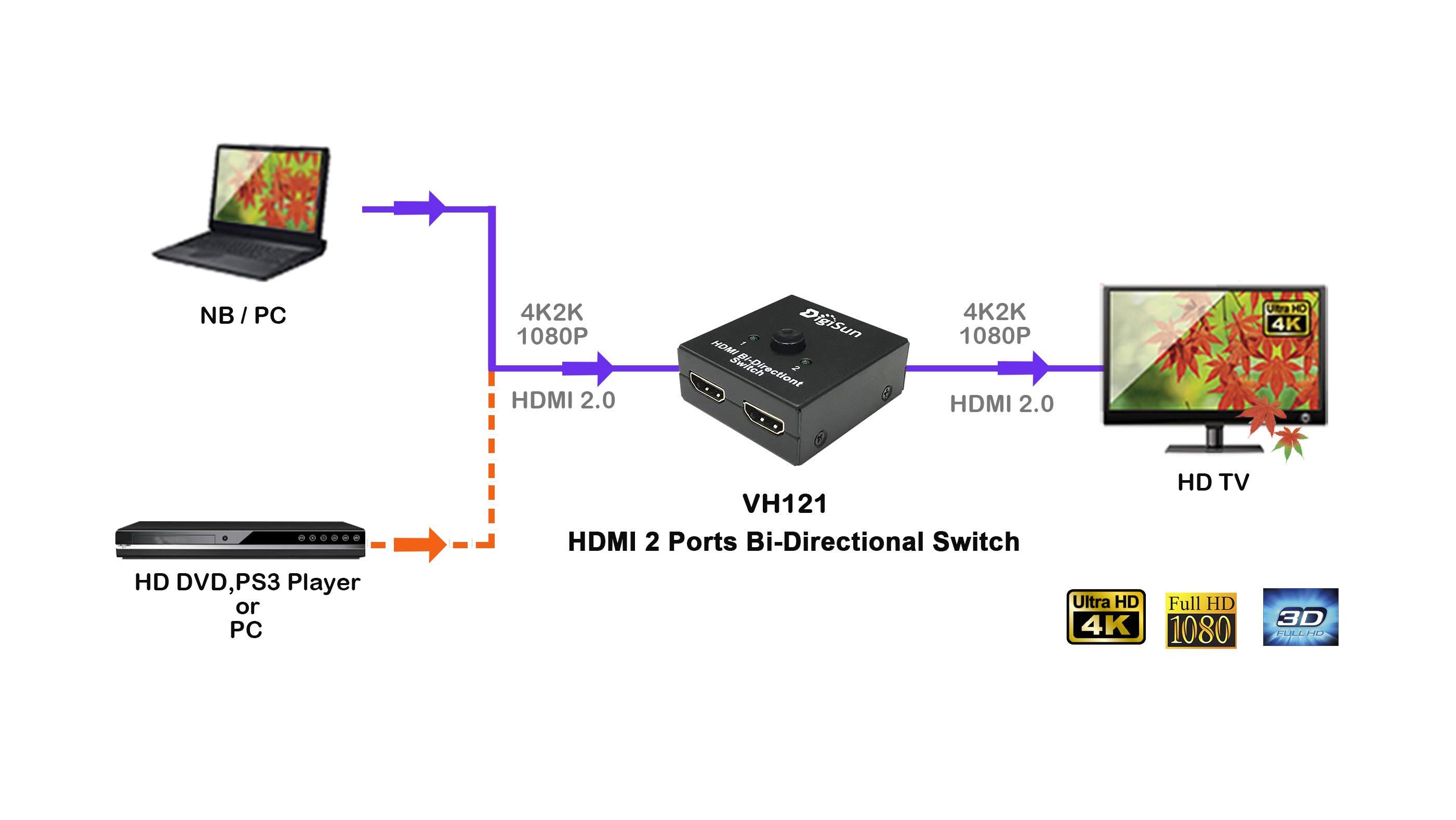

 Switch Mode：

Interface：

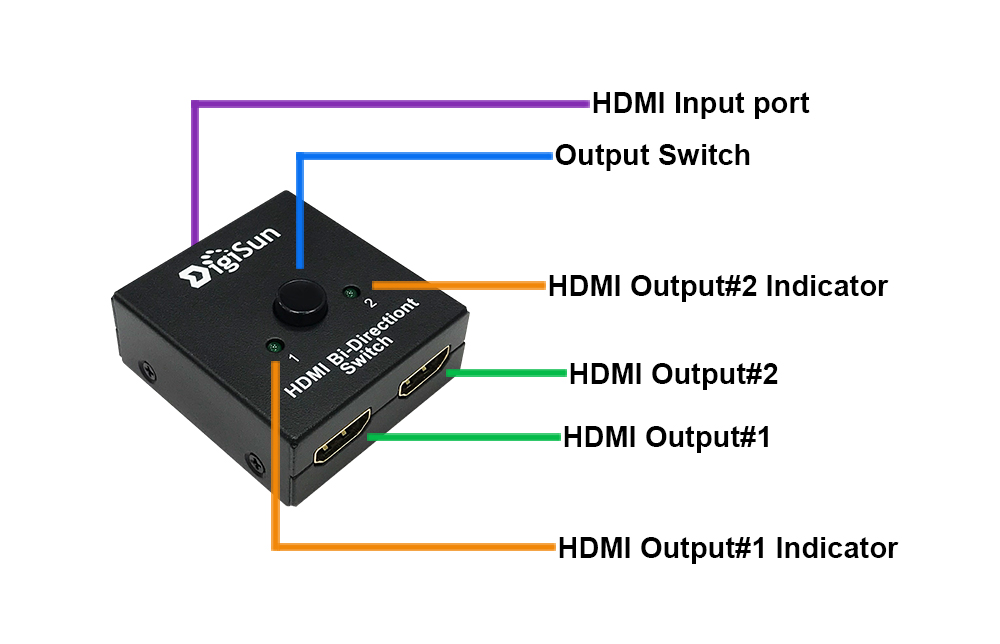

Splitter Mode：

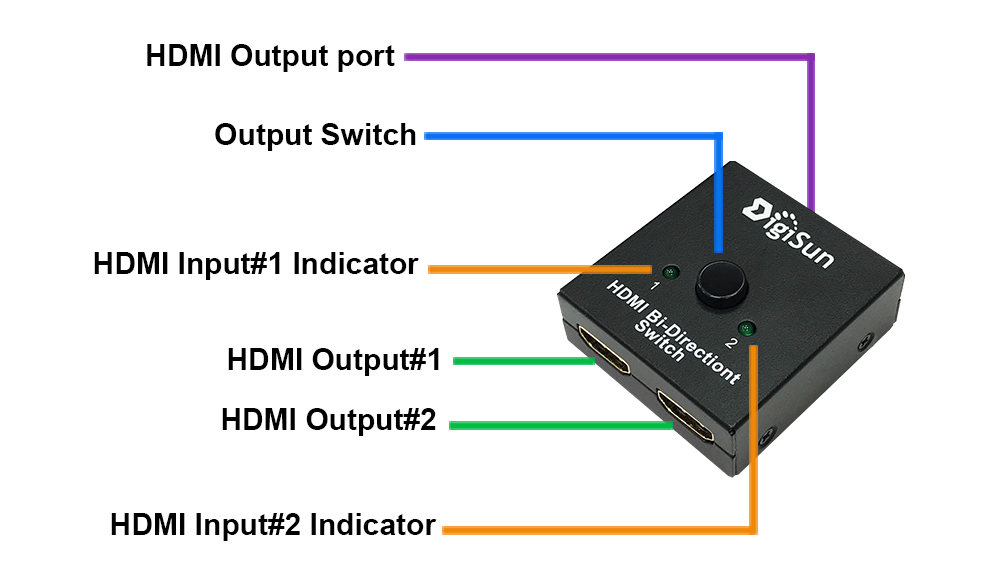

 Switch Mode：

Specification：


I/O HDMI ports	Splitter mode：1 input / 2 output or   Switch mode：2 input / 1 output
Max Signal Range	1920 x 1080 1080P; 3D 1080P @24HZ, 4K x 2K
Protocol	HDMI 1.4 & HDCP 1.2 (Compatible HDMI 1.3/1.2/1.1/1.0)
Video Color Format	24/30/ 36(bit) deep color
Audio Format	DTS-HD/Dolby-TrusHD/LPCM7.1/DTS/Dolby-AC3/DSD
Dimension	110 x 60 x 18 mm  103 g

Package Contents：

1 x VH121  HDMI 2 Ports Bi-Directional Switch
